Designline Double Bowl Sink Units

CED’s Designline range of standard single and double bowl catering sink units are constructed from sturdy 30mm sq box section framing with durable 1.5mm thick 304 gd. steel worktops and 1.2mm thick 304 gd. bowls as standard.  Both single & double bowl sink units are available in six standard lengths, each length can also be made in four depths. Standard sink height is 900mm – to suit most kitchen area back counters.

Each sink unit has a steel drainer worktop section with a ribbed drainer embossed pattern and can be fitted with a further choice of three bowl sizes. The sink unit comes complete with waste fitting and strainer waste for bowl, a 50 mm wall upstand to the worktop & a solid steel storage under-shelf below. The legs of the single or double bowl sink unit are fitted with adjustable height flanged feet, for securing the unit to a floor surface on site. The sink unit legs are inset 100 mm to the rear, to allow for service pipework behind. Waste traps & pipes are not supplied.

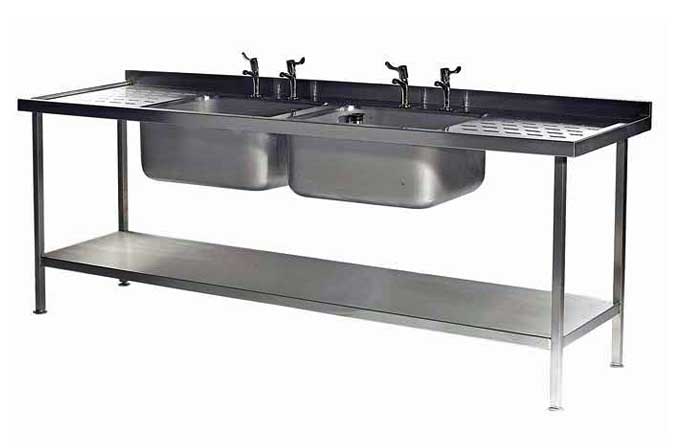

• Free standing commercial s/steel double bowl sink unit with left & right hand drainer worktop.
• Worktops constructed in 304 gd (1.5 thk.) s/steel with 304 gd  (1.2 thk.) s/steel bowls,  supported on 30 x 30 box section 430 gd (1.2 thk.) framework.
• Welded low level 430 gd (1.2 thk.) s/steel storage under-shelf.
• Available in 1500, 1800, 2100, 2400, 2700 & 3000 mm standard lengths.
• Each sink unit length also available in 600, 650, 700 & 800 mm depths.
• Standard sink height is 900mm – to suit most kitchen area back counters.
• Option of 3 bowl sizes: A)  610 long x 450 wide x 300 mm deep. B)  500 long x 400 wide x 300 mm deep.
  C)  400 long x 400 wide x 300 mm deep
• Drainer worktop features ribbed drainer pattern, enabling less surface contact whilst drying dishes etc.
• Drip mould edging surround to worktop area prevents water spillage.
• 50 mm splashback/wall upstand to rear of worktop.
• Supplied with 2 no. waste fittings and 2 no. strainer wastes for bowls
• Sink unit legs inset 100 mm to the rear, to allow for service pipework behind.
• Frame fitted with flanged levelling feet for mechanical fixing to floor surface.
• Taps, 1 1/2″ waste traps & waste pipes are not supplied.
