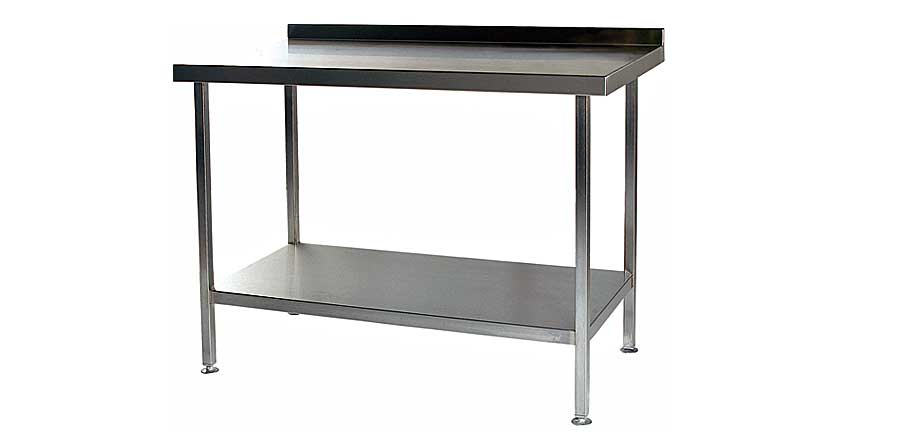

Designline Stainless Steel Wall Benches

CED’s Designline range of standard wall and centre benches are constructed from sturdy 30 mm 430 gd. sq box section framing with durable 1.5 mm thick 304 gd. steel worktops and 1.2 mm thick 430 gd. under shelves as standard. Both wall & centre bench units are available in eleven standard lengths, each length can also be made in four depths. Standard bench height is 900 mm to suit most kitchen area back counters.

Each bench type has a solid steel worktop section with 50 mm turn down to each edge, the wall bench has a 50 mm high by 15 mm deep up stand to the rear. The bench comes complete with a solid steel storage under-shelf below. The legs of the wall or centre bench are fitted with adjustable height flanged feet, for securing the unit to a floor surface on site. Wall bench legs are inset 100 mm to the rear, to allow for service pipework behind. Centre bench & wall bench legs are set inboard of the worktop 50 mm at each end.

• Wall sited commercial s/steel solid top wall bench.
• Worktop constructed in 304 gd (1.5 thk.) s/steel supported on 30 x 30 box section 430 gd (1.2 thk.) fully welded framework.
• Welded low level 430 gd (1.2 thk.) s/steel storage under-shelf.
• Available in 300, 450, 600, 900, 1200 , 1500, 1800, 2100, 2400, 2700 & 3000 mm standard lengths.
• Each wall bench length is also available in 650, 700, 800 & 1000 mm depths.
• Standard wall bench height is 900 mm – to suit most kitchen area back counters.
• Steel worktop features 50 mm down stand to each edge.
• 50 mm splashback/wall up stand to rear of worktop.
• Wall bench legs inset 100 mm to the rear, to allow for service pipework behind.
• Frame fitted with flanged levelling feet for mechanical fixing to floor surface.
