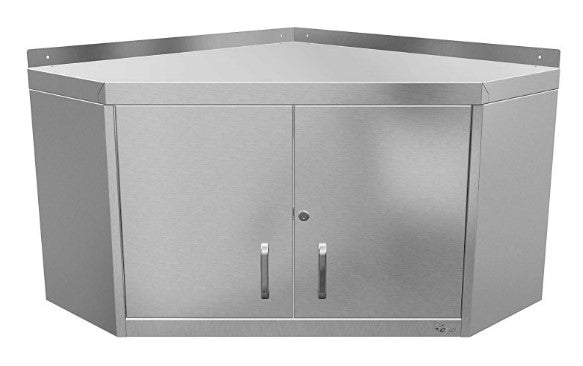

Quick Service QAWC753LH Angled Corner Wall Cupboard With Lockable Doors
Product No: QAWC753LH
Product Description
Quick Service wall cupboards are made from high quality 430gd stainless steel & provide hygienic storage in the commercial kitchen area.
The angled corner wall cupboard (with doors) utilises dead space and can...
Specifications
- Capacity (litres)
- 188
- External height (mm)
- 540
- Extra information
- Angled Corner Length (mm) 750; O/all Width/Depth (mm) 820 (w) x 820 (d); Roof Upstand (mm) 40
- Material
- Stainless Steel
Downloads
Quick Service Cleaning GuideProduct Description
Quick Service wall cupboards are made from high quality 430gd stainless steel & provide hygienic storage in the commercial kitchen area.
The angled corner wall cupboard (with doors) utilises dead space and can be used in conjunction with 300mm deep cupboards either side, to provide continuous high level storage. The angled corner cupboard offers a deeper storage area and is available as a lockable version also.
- Wall mounted commercial s/steel fully enclosed storage cupboard.
- Outer panels, doors, top & base shelf constructed in 430 gd (0.9 thk.) s/steel.
- Available in 450, 600, 750, 900 & 1200 mm standard lengths.
- Adjustable height 430 gd (1.2 thk.) s/steel storage mid-shelf.
- Standard cupboard height 540 mm. Standard cupboard depth 300 mm.
- Rear up stand to roof for sealing against a surface where items may be stored on top.
- Roof upstand fixing hole size Ø 7.2mm.
- Full height flush steel back panel.
- Wall mounting support brackets supplied – fixing hole size Ø 7.2mm.
- Lockable hinged door models feature side hung steel doors (inner/ outer panel type) fitted with chrome D handles.
- Barrel lock and two suited keys.
Specifications
- Capacity (litres)
- 188
- External height (mm)
- 540
- Extra information
- Angled Corner Length (mm) 750; O/all Width/Depth (mm) 820 (w) x 820 (d); Roof Upstand (mm) 40
- Material
- Stainless Steel
- Weight (kg)
- 39
